Coils for ADF Series solenoid valve are plastic-encapsulated. It features moisture proof ,shock proof and anti-corrosive. All parts are made of stainless steel. It can be used in pneumatic, hydraulic and water supply system for the application of ammonia and Freon.
contact usCoils for ADF Series solenoid valve are plastic-encapsulated. It features moisture proof ,shock proof and anti-corrosive. All parts are made of stainless steel. It can be used in pneumatic, hydraulic and water supply system for the application of ammonia and Freon.
- Suitable for ammonia, HFC, HCFC ,clean water, ≤4°viscosity machine oil
- Coil type:
AC: 24V, 36V, 110V, 220V
DC: 12V, 24V
- Opening pressure diff.
AC: 0.05 – 21 bar
DC: 0.05 – 17 bar
- Max working pressure:30bar
- Medium temperature: -25℃ to 105℃

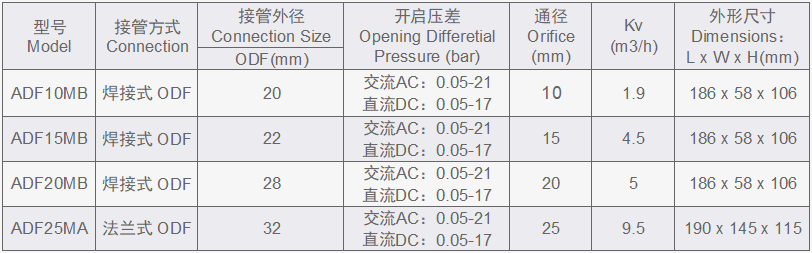

The Kv value is the water flow in m3/h at a pressure drop across valve of 1 bar，ρ=1000kg/ m3.
